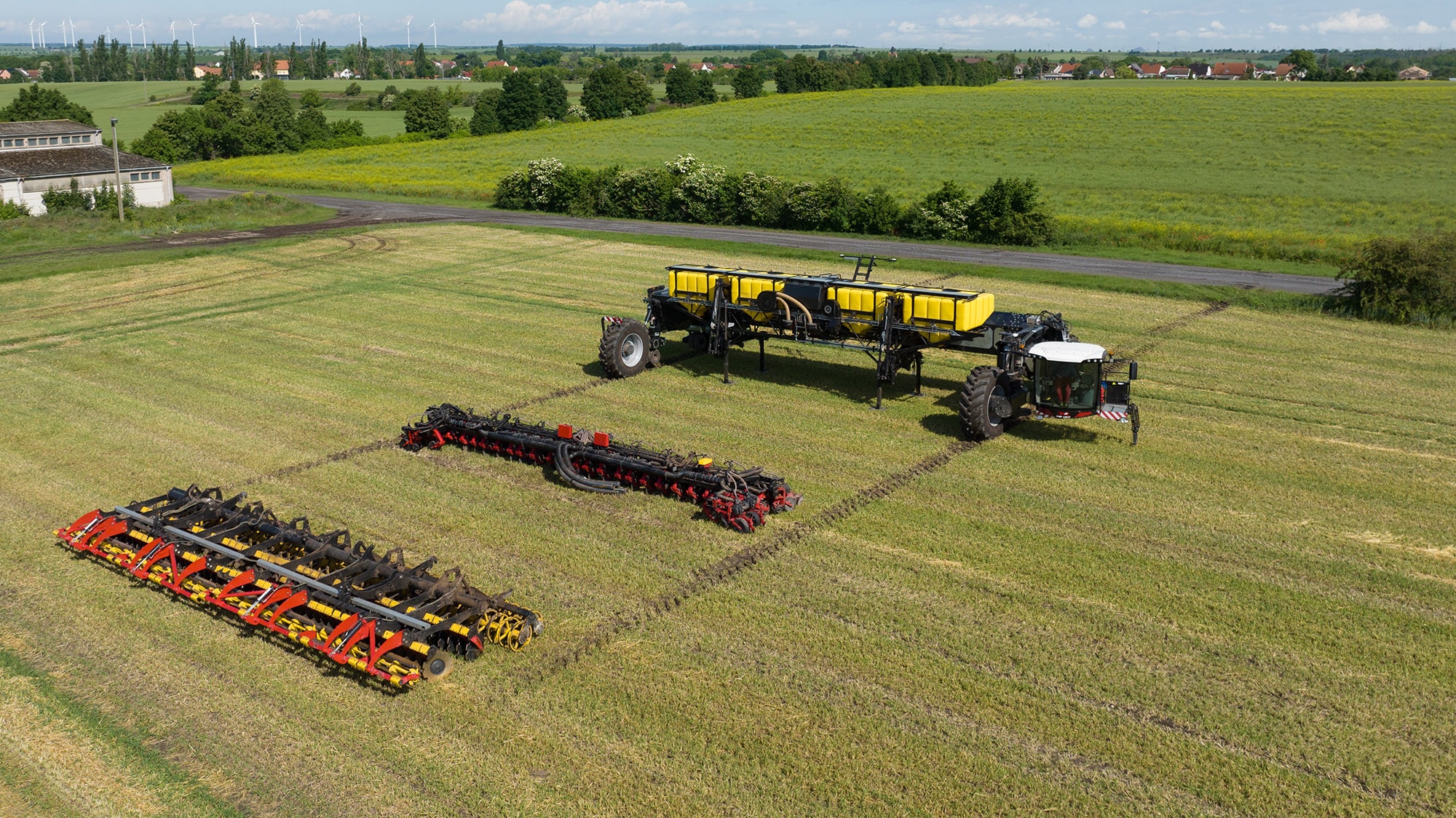

Sowing and Cultivation

The Seedhopper tank system is the basic module for the NEXAT. It is the interface for all implements for soil cultivation and sowing. Also discover all the elements for soil cultivation and sowing.

Learn more

Seedhopper Tank System

The Seedhopper serves as an interface to NEXAT for various implementations. Depending on requirements, the Seedhopper can spread different combinations of solid and liquid fertilizer as well as seeds.

  • up to 5,500 gal / 570 bu (20.500 l (5.125 l/ea))
  • 4 tanks for liquids and/or granular
  • 1 – 90 bu central fill for seed
  • weight is measured with scales per tank
  • 2 coupling points for mounting implements
  • 3 products can be applied simultaneously

Pneumatic Seed Drill Powered by Väderstad

  • seeding with high precision
  • hydraulic coulter pressure
  • direct seeding possible
  • 5 – 25 in (14 – 65 cm) row distance

Planting Powered by Väderstad

  • highest planting precision
  • Furrow clearing
  • direct seeding possible
  • 17 – 30 in (45 – 70 cm) row distance

Disc Harrow Powered by Väderstad

  • ultra-shallow tillage
  • individually suspended rubber discs
  • conical discs for optimal mixture of residue
  • working depth of up to 6 in (16 cm)
  • integrated management of wheel tracks
  • crosscutter discs available for full cultivation

Universal Cultivator

  • 45 ft (14 m) working width
  • 20 in (50 cm) tine spacing for deeper cultivation
  • 14 in (35 cm) working depth at a speed of 5 – 6 mph (8 – 10 km/h) possible
  • minimum tillage for water efficient seedbed preparation
  • 4 sections for optimum ground contour following
